Guiding lines

Guiding lines - Using PAC - Rear Park Assist Camera (PAC)* - Comfort and driving pleasure - Volvo S60 Owners Manual - Volvo S60

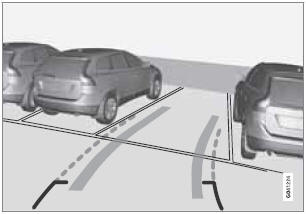

The lines on the screen are projected as if they were a path on the ground behind

The lines on the screen are projected as if they were a path on the ground behind the vehicle and are affected by the way in which the steering wheel is turned. This enables the driver to see path the vehicle will take, even if he/she turns the steering wheel while backing up.

NOTE NOTE

When backing up with a trailer, the guiding lines show the path that the vehicle will take, not the trailer.

WARNING WARNING

Keep in mind that the image on the screen only shows the area behind the vehicle. The driver must always watch for people, animals, other vehicles, etc., near the sides of the vehicle when turning while backing up.
