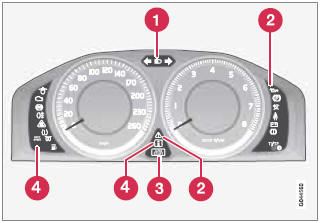

Indicator and warning symbols

Indicator and warning symbols

1 - High beam and turn signal indicators

2 - Indicator and warning symbols

3 - Information symbols

4 - Indicator and warning symbols
